VALVES
In Industrial Systems, piping is one of the most important system & valves are considered to be one of the most critical components of a piping system, which restricts, stops or controls flow of fluids through the system.
Smooth operation in flow & control of fluids require ultimate care in selection process for a right type of valve, right type of material.
Team Akrivis Plus, with the virtue of years of professional experience in industrial valves and an efficient supply chain of Stockists & manufacturers of valves in the network, is serving industrial sector with vast range of valves produced by the reputed valve manufacturers from around the globe.
From Project requirements to the urgent O&M requirements, Akrivis Plus serves the requirements of her clients with quality products in valves, actuators & actuation products like limit switches, positioners, solenoids etc.
Akrivis Plus supplies reliable valve spare parts for a large range of valves & process control systems, manufactured as per the OEM designs or the samples provided.
OUR SUPPLY RANGE INCLUDES:
In Industrial Systems, piping is one of the most important system & valves are considered to be one of the most critical components of a piping system, which restricts, stops or controls flow of fluids through the system.
Smooth operation in flow & control of fluids require ulti...
Types: Gate, Glob...

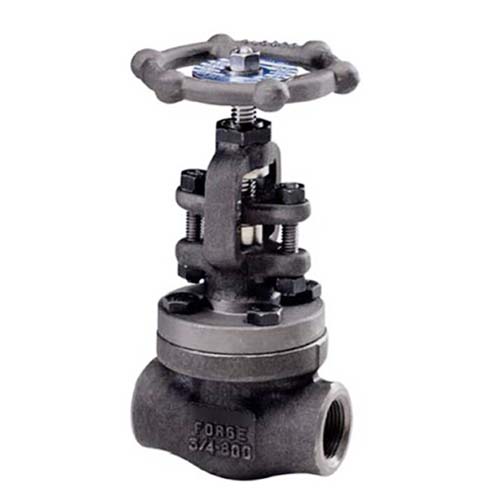

Read MoreTypes: Gate, Globe, Check, Integral Flanged, Below Sealed, Extended Body Gate & Cryogenic Valves
Design Standards: ASME B16.34, API 602
Pressure class: 150 to 2500
Size Range: ¼” to 2”
End Connections: NPT, SW, RTJ, RF, BW
Body Material: All low temperature & high temperature forged grades, especially Stainless Steels, duplex, super duplex, Alloy Steels with Cr, Mo, Ni & other exotic grades.
Trim: As per API 600
Design Features:
Port type &nd...
Read Less

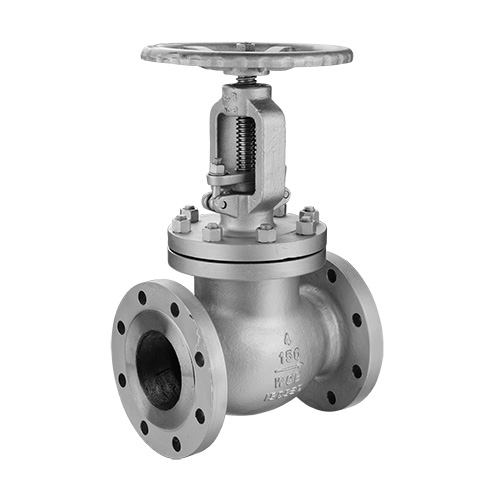

Types: Gate, Globe, and Check
Classes: 150# to 600#
Size: 2” and Above
End Connections: SW / NPT / RF / BW
Body Material: Carbon Steel, Alloy Steel & Stainless Steel (from Low temperatures to moderate & High Temperatures)
Trim: as per API 600
Design Features:
Low emission design
Gate Valves with flexible wedge, OS&Y
Extended stem for Gate & Globe (Optional)
Check valves with optional swing or plug disc
Operation: Manual (lever / Gear) or Actuated
Types: Gate, Globe, and Check
Classes: 150# to 600#
Size: 2” and Above
End Connections: SW / NPT / RF / BW
Body Material: Carbon Steel, Alloy Steel & Stainless Steel (from Low temperatures to moderate & High Temperatures)
Trim: as per API 600
Design Features:
Low emission design
Gate Valves with flexible wedge, OS&Y
Extended stem for Gate & Globe (Optional)
Check valves with optional swing or plug disc
Op...
Types: Gate, Glob...

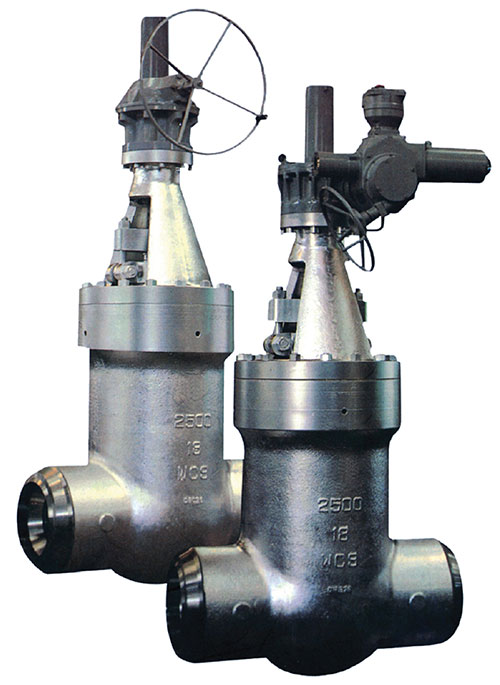

Read MoreTypes: Gate, Globe, and Check
Class: up to 2500# (4500# in few sizes)
Size: 2” to 36”
Testing: as per API 598, BS 6755
End Connections: RF / RTJ / BW
Body Material: Carbon steel (moderate to low temperature), Stainless steel & Alloy Steel (Including Cro-Moly & Alloy 20 & High Nickel lloys).
Trim: As per API 600
Operation: Manual (lever / Gear) or Actuated
Design Features (ANSI B16.34):
Low Emission design
Gate valve...
Read Less

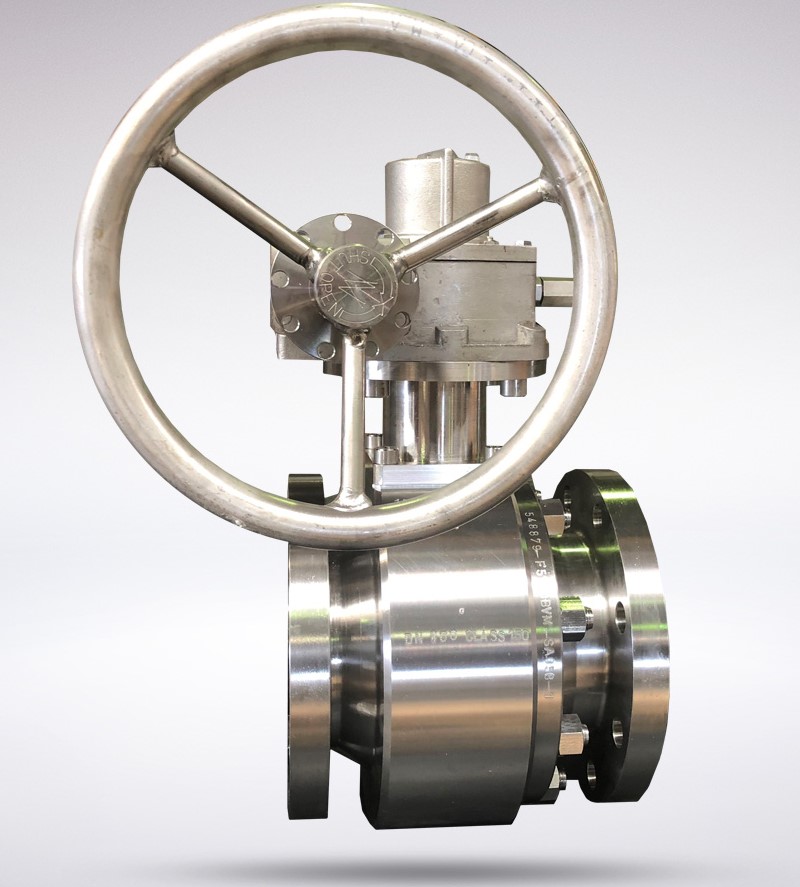

Types: Ball, Gate Globe, Check
Size range: 2” to 36”
Class: 150# to 2500#
Body Material: Stainless steel
End Connections: RF, RTJ, BW
Design features:
Extended Bonnet / Stem
Low emission
Double block & Bleed (Ball)
Lip Seal design (Ball)
Blow-out-proof stem (Ball)
Fire Safe
Types: Ball, Gate Globe, Check
Size range: 2” to 36”
Class: 150# to 2500#
Body Material: Stainless steel
End Connections: RF, RTJ, BW
Design features:
Extended Bonnet / Stem
Low emission
Double block & Bleed (Ball)
Lip Seal design (Ball)
Blow-out-proof stem (Ball)
Fire Safe
Type: Gate and Ch...
Read MoreType: Gate and Check; Globe valve on request
Design Construction: API 6D
Size: 2” 1/16" to 4" 1/16
Classes: 2000 to 10,000 Psi
End Connections: SW, NPT, Flanged
Design Features:
Non rising stem
Loose fitted seats on gate valve only
Slab parallel disc or Expanding parallel disc with spring
Metal to metal body bonnet seal
Soft or metal-to-metal seats design (Optional)
Read Less

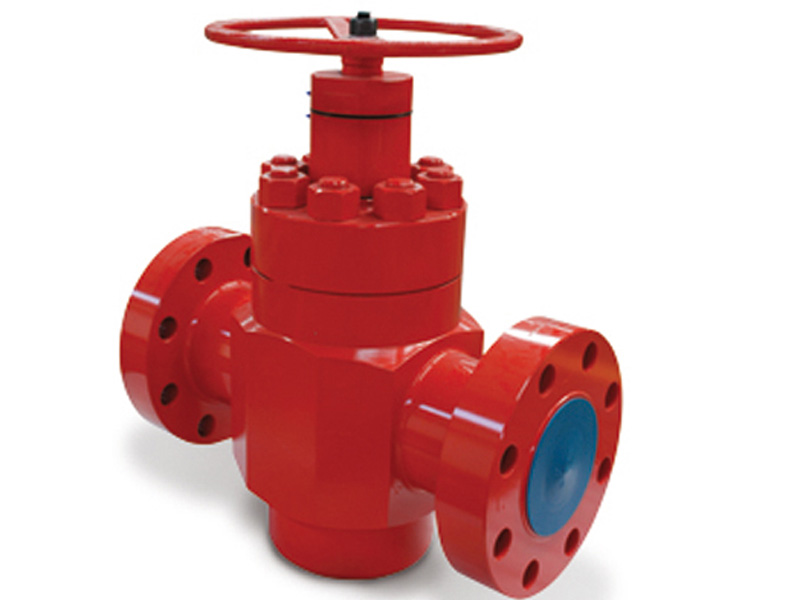

Type: Gate and Check; Globe valve on request
Design Construction: API 6A
Size: 2” 1/16" to 4" 1/16
Classes: 2000 to 10,000 Psi
End Connections: SW, NPT, Flanged
Non rising stem
Loose fitted seats on gate valve only
Slab parallel disc or Expanding parallel disc with spring
Metal to metal body bonnet seal
Soft or metal-to-metal seats design according to customer (Optional)
Type: Gate and Check; Globe valve on request
Design Construction: API 6A
Size: 2” 1/16" to 4" 1/16
Classes: 2000 to 10,000 Psi
End Connections: SW, NPT, Flanged
Non rising stem
Loose fitted seats on gate valve only
Slab parallel disc or Expanding parallel disc with spring
Metal to metal body bonnet seal
Soft or metal-to-metal seats design according to customer (Optional)
Akrivis Plus assi...

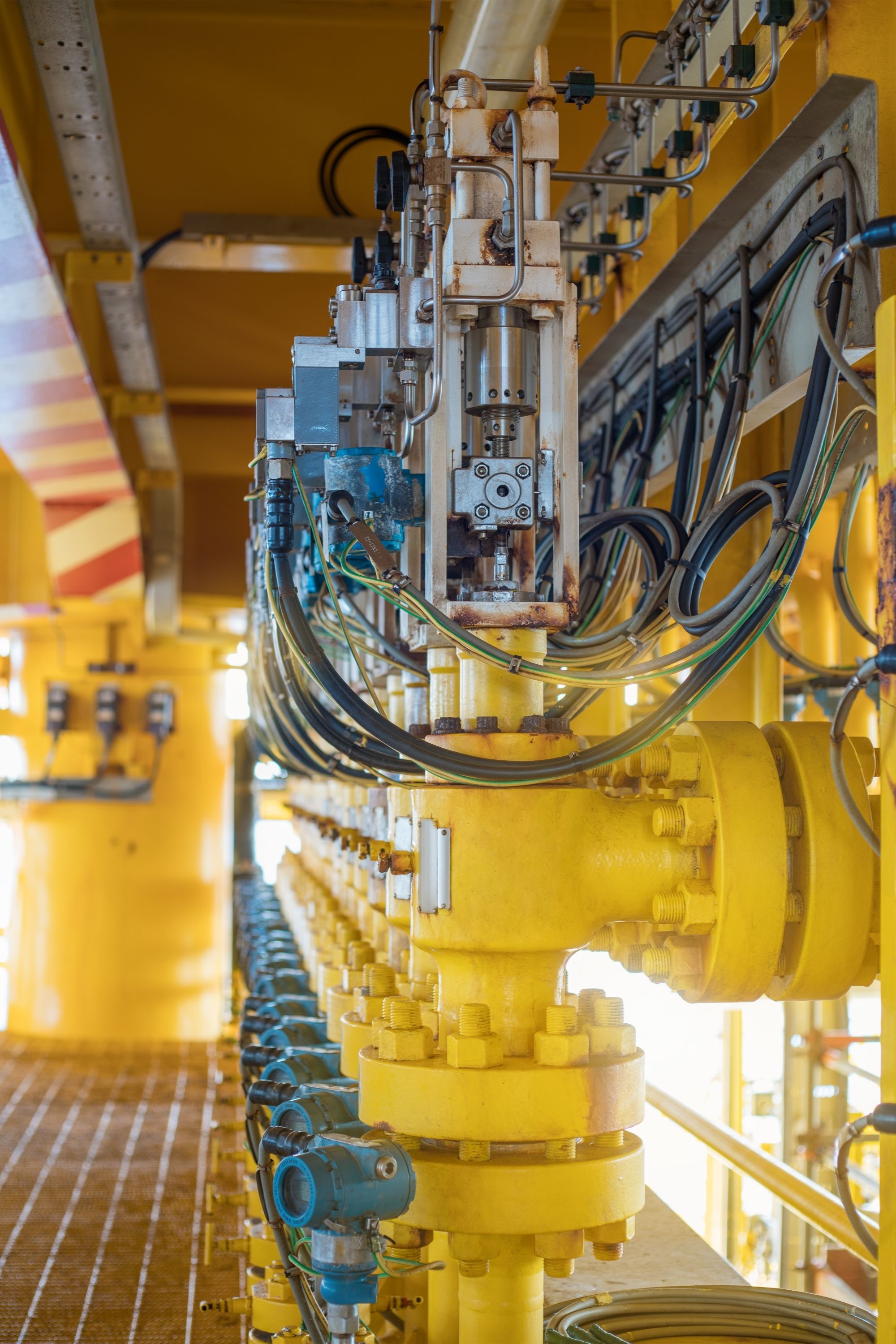

Read MoreAkrivis Plus assists end-users in identifying & finding right actuators (both Pneumatic & electric) and supply the complete valve assembly with actuators & accessories.
Actuated Products offered:
On-off Ball / Control valves
On-off Butterfly Valves
Pneumatically actuated Valves, single acting / double acting
Multi turn valves (pneumatic & motor)
Quarter Turn on-off Valves (Ball / Butterfly / Plug)
Read Less

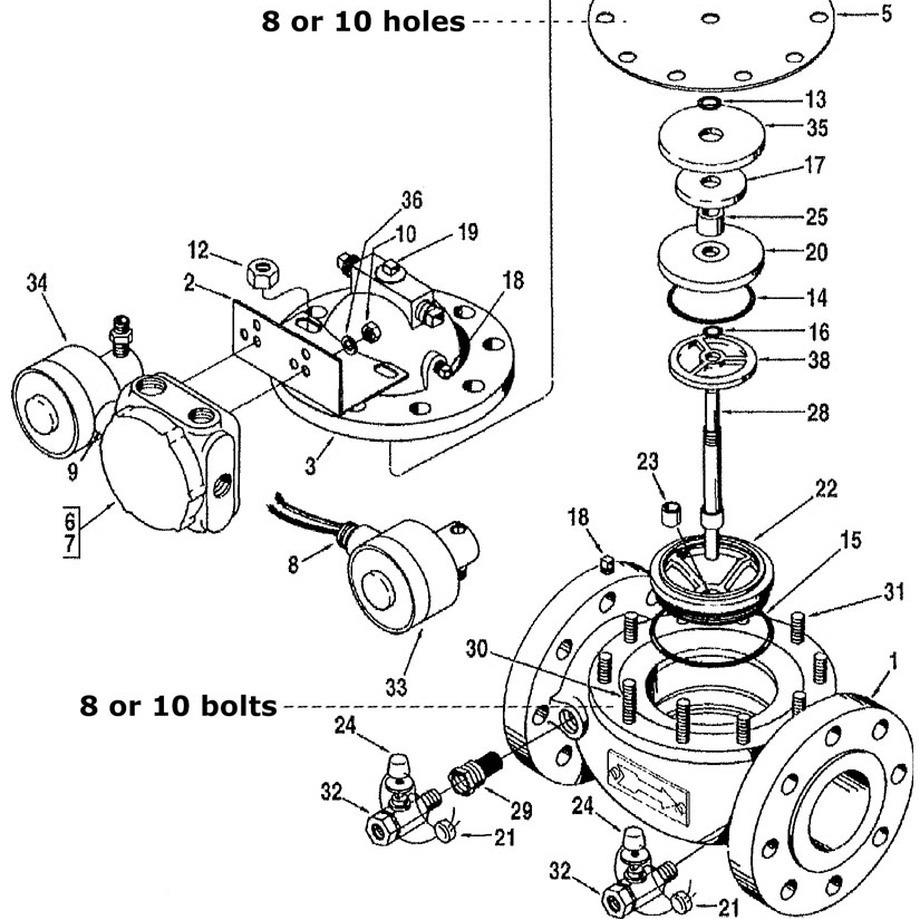

Akrivis Plus, in coordination with partners’ network, supplies large range of genuine spare parts for fluid handling devices & processing equipment like different types of valves including control valves, actuators and pumps.
By the virtue of our partnerships with leading OEMs & sound knowledge of the industry enables Akrivis Plus to offer wide range of genuine spare parts & an option for alternate / custom made spares.
Akrivis Plus positioned herself as a reliable spare part supplier in critical times, especially for hard-to-find & obsolete models.
Akrivis Plus, in coordination with partners’ network, supplies large range of genuine spare parts for fluid handling devices & processing equipment like different types of valves including control valves, actuators and pumps.
By the virtue of our partnerships with leading OEMs & sound knowledge of the industry enables Akrivis Plus to offer wide range of genuine spare parts & an option for alternate / custom made spares.
Akrivis Plus positioned herself as a reliable spare part supplier in critical times, especially for h...
